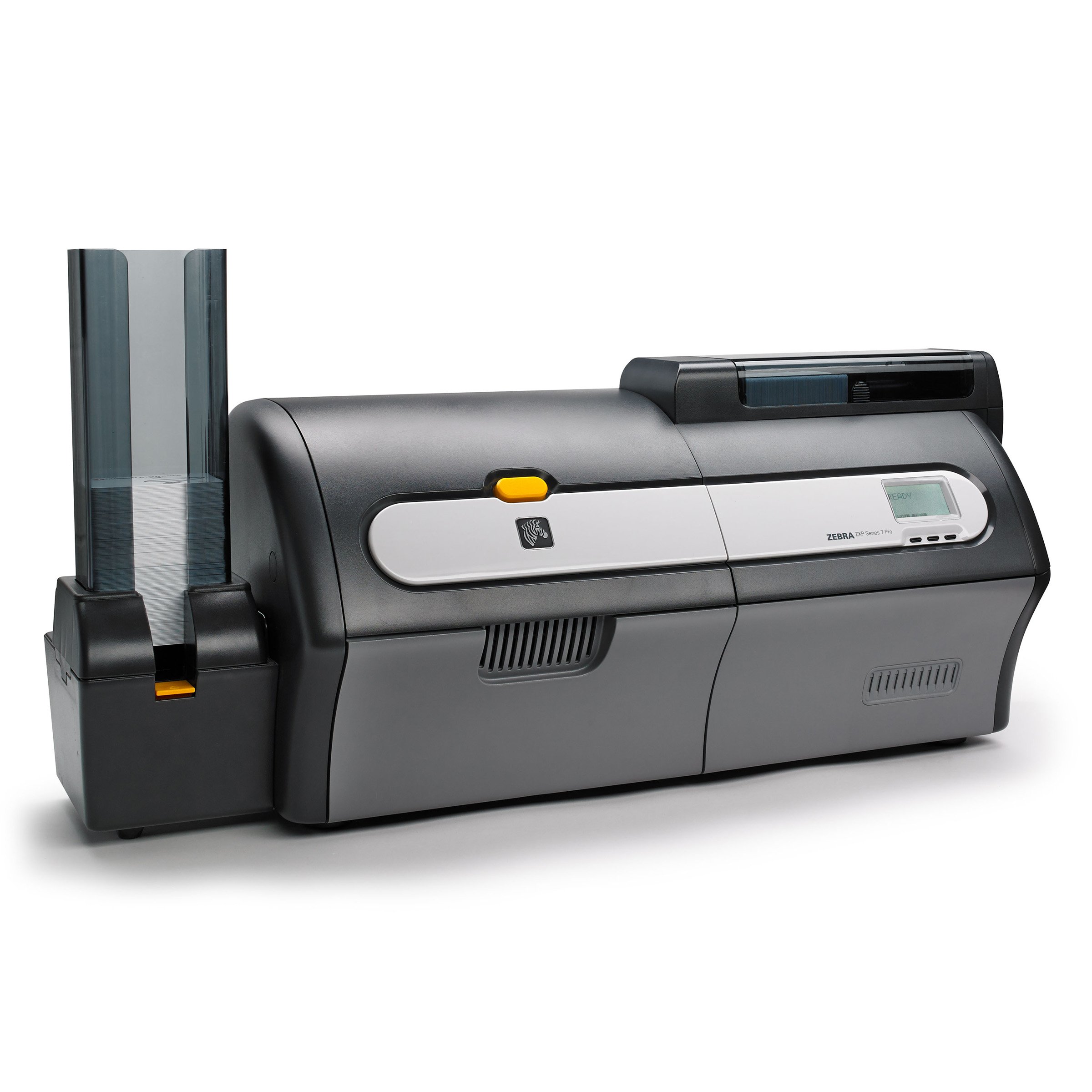

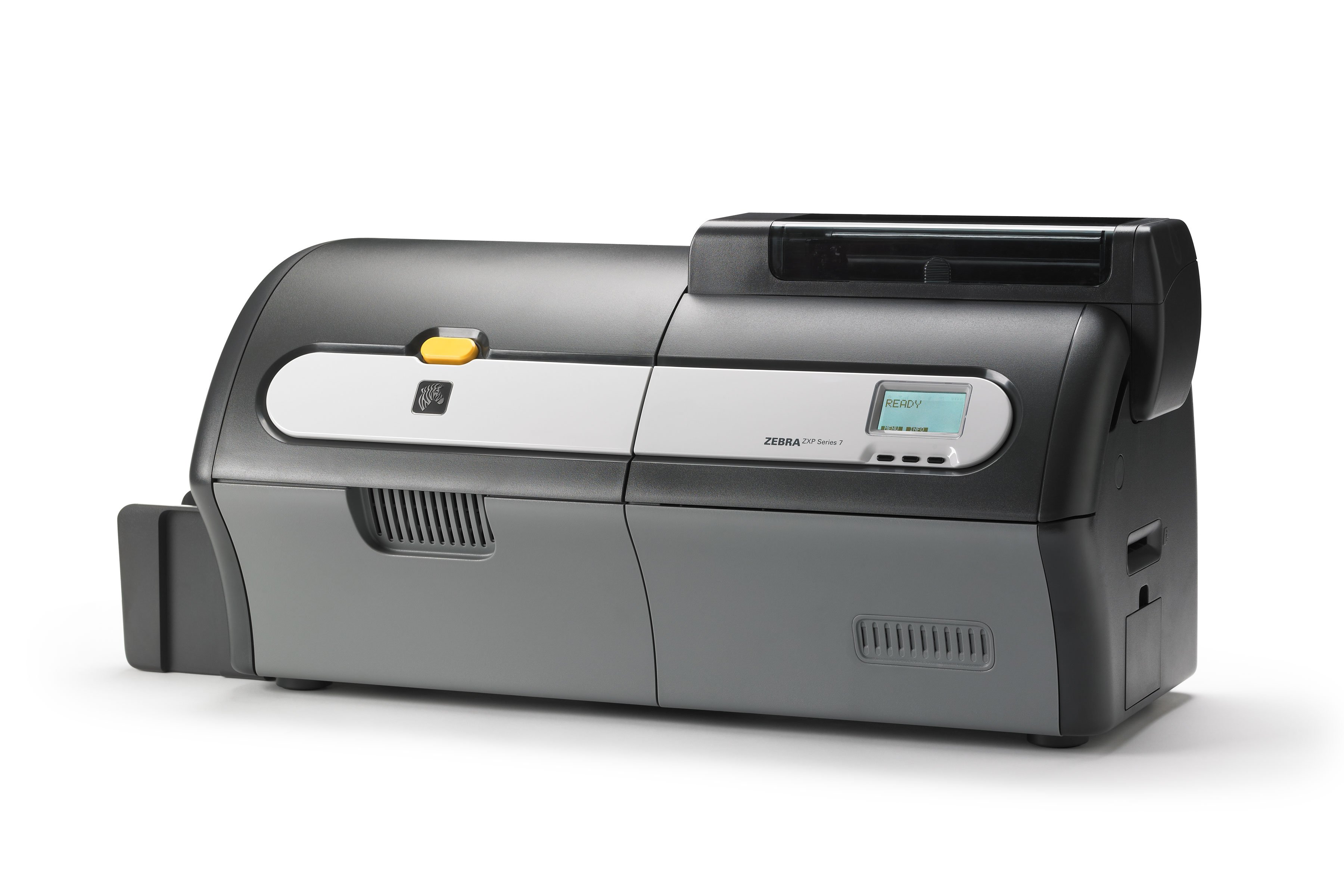

Zebra 斑马 ZXP Series 7 打印机
资料更新于
本分类型号
Zebra 斑马 ZD888 桌面打印机
Zebra 斑马 P210i 打印机
Zebra 斑马 170PAX4 打印机
Zebra 斑马 ZD230 桌面打印机
Zebra 斑马 Encore 3 打印机
Zebra 斑马 ZT411Z 工业打印机
Zebra 斑马 IMZ220 打印机
Zebra 斑马 ZT111 工业打印机
Zebra 斑马 S4M 打印机
Zebra 斑马 QL 220 Plus 打印机
Zebra 斑马 P600 打印机
Zebra 斑马 GX430 打印机
查看全部 111 款 →
Zebra 斑马 ZXP Series 7 是一款证卡打印机，提供公开规格与选型资料。适合门禁证卡、员工卡、访客证与会员卡制作等桌面制卡场景。
本页资料由苏州斯康整理，便于Zebra 斑马 ZXP Series 7 打印机选型对照与项目沟通。
斯康条码可为Zebra 斑马 ZXP Series 7 打印机提供参数核对、方案建议与到货支持。
核心参数
Environmental
Operating Temperature: 59ºF to 95ºF/15ºC to 35ºC Operating Humidity: 20% to 80% non-condensing Storage Temperature: 23ºF to 158ºF/-5ºC to 70º C Storage Humidity: 10% to 90% non-condensing Media Storage: Temperature: 41ºF to 86ºF/5ºC to 30ºCHumidity: 30% to 50% non-condensingDo not store in direct sunlight
Electrical
Auto-switching single-phase AC power 90V – 264V AC and 47 – 63Hz (50 – 60Hz nominal) FCC Class A
Dimensions
ZXP Series 7: Printer only: 12 in. H x 10.9 in. L x 27.5 in. W 306 mm H x 277 mm D x 699 mm W Printer with laminator: 12 in. H x 10.9 in. L x 38 in. W 306 mm H x 277 mm D x 964 mm W ZXP Series 7 Pro: Printer only: 13.75 in. H x 10.9 in. L x 28.25 in. W 349 mm H x 277 mm D x 718 mm W
Weight
ZXP Series 7: Printer only: 26.9 lbs/12.2 kg Printer with laminator: 39.5 lbs/17.9 kg ZXP Series 7 Pro: Printer only: 31.7 lbs/14.4 kg Printer with laminator: 44.3 lbs/20.1 kg
扫码加企业微信
快速咨询 · 方案沟通 · 项目对接
已有 442 人浏览
适用场景
门店价签
办公贴标
轻量仓储出库
若你在问「哪些场景适合选 Zebra 斑马 ZXP Series 7 打印机」：优先匹配以上场景标签；现场还需结合标签规格、日作业量、接口环境与是否需要耐摔/防水等条件综合判断。
选型要点
下列要点便于采购与实施快速核对；优先对照本页规格表，再结合现场标签/码制/接口与作业负荷验证。
- •先看标签用途：物流面单/短期价签优先热敏；资产、追溯、耐刮擦/耐候标签优先热转印（并匹配蜡基/混合基/树脂碳带）。
- •再看负荷：门店与轻仓储选桌面机；产线/仓储连续批量、多班次作业优先工业机。
- •分辨率：常规外箱标多为 203dpi；SKU/小字/密集条码优先 300dpi；极小电子元器件标签可评估 600dpi。
- •评估 Zebra 斑马 ZXP Series 7 打印机 时请准备：标签尺寸与材质、日打印量、保存环境、接口方式、是否已有模板/驱动。
Zebra 斑马 ZXP Series 7 打印机 常见排障
条码打印机多数现场问题来自耗材安装、测纸校准或打印头清洁，按下列顺序排查可快速定位。
-
1. 确认打印模式与耗材
热转印必须正确安装碳带（注意内碳/外碳方向）；驱动里勿误选成热敏模式，否则常见整张白纸。
-
2. 重新测纸/校准介质传感器
跳标、打在标签缝或中缝打印，多因传感器类型（间隙/黑标）不符或传感器脏污。清洁后按机型执行校准。
-
3. 清洁打印头与胶辊
打印浅淡、竖白线或脏污，先降温后用无纺布+异丙醇清洁打印头与胶辊；竖白线清洁无效再怀疑打印头损坏。
-
4. 调整浓度、速度与压力
过浅可提高浓度或降低速度；过浓拖墨则相反。碳带起皱出现斜白带时，重新穿带并检查碳带/标签宽度匹配。
-
5. 检查接口与驱动模板
电脑无输出时核对 USB/网口连通、驱动端口与标签尺寸模板是否与实物一致。
产品简介
View and download the technical specification sheet for the ZXP Series 7 Card Printers.
- Environmental：Operating Temperature: 59ºF to 95ºF/15ºC to 35ºC Operating Humidity: 20% to 80% non-condensing Storage Temperature: 23ºF to 158ºF/-5ºC to 70º C Storage Humidity: 10% to 90% non-condensing Media Storage: Temperature: 41ºF to 86ºF/5ºC to 30ºCHumidity: 30% to 50% non-condensingDo not store in direct sunlight
- Electrical：Auto-switching single-phase AC power 90V – 264V AC and 47 – 63Hz (50 – 60Hz nominal) FCC Class A
核心规格
| Environmental | Operating Temperature: 59ºF to 95ºF/15ºC to 35ºC Operating Humidity: 20% to 80% non-condensing Storage Temperature: 23ºF to 158ºF/-5ºC to 70º C Storage Humidity: 10% to 90% non-condensing Media Storage: Temperature: 41ºF to 86ºF/5ºC to 30ºCHumidity: 30% to 50% non-condensingDo not store in direct sunlight |
| Electrical | Auto-switching single-phase AC power 90V – 264V AC and 47 – 63Hz (50 – 60Hz nominal) FCC Class A |
| Dimensions | ZXP Series 7: Printer only: 12 in. H x 10.9 in. L x 27.5 in. W 306 mm H x 277 mm D x 699 mm W Printer with laminator: 12 in. H x 10.9 in. L x 38 in. W 306 mm H x 277 mm D x 964 mm W ZXP Series 7 Pro: Printer only: 13.75 in. H x 10.9 in. L x 28.25 in. W 349 mm H x 277 mm D x 718 mm W |
| Weight | ZXP Series 7: Printer only: 26.9 lbs/12.2 kg Printer with laminator: 39.5 lbs/17.9 kg ZXP Series 7 Pro: Printer only: 31.7 lbs/14.4 kg Printer with laminator: 44.3 lbs/20.1 kg |
Operating Characteristics
| Environmental | Operating Temperature: 59ºF to 95ºF/15ºC to 35ºC Operating Humidity: 20% to 80% non-condensing Storage Temperature: 23ºF to 158ºF/-5ºC to 70º C Storage Humidity: 10% to 90% non-condensing Media Storage: Temperature: 41ºF to 86ºF/5ºC to 30ºCHumidity: 30% to 50% non-condensingDo not store in direct sunlight |
| Electrical | Auto-switching single-phase AC power 90V – 264V AC and 47 – 63Hz (50 – 60Hz nominal) FCC Class A |
Physical Characteristics
| Dimensions | ZXP Series 7: Printer only: 12 in. H x 10.9 in. L x 27.5 in. W 306 mm H x 277 mm D x 699 mm W Printer with laminator: 12 in. H x 10.9 in. L x 38 in. W 306 mm H x 277 mm D x 964 mm W ZXP Series 7 Pro: Printer only: 13.75 in. H x 10.9 in. L x 28.25 in. W 349 mm H x 277 mm D x 718 mm W |
| Weight | ZXP Series 7: Printer only: 26.9 lbs/12.2 kg Printer with laminator: 39.5 lbs/17.9 kg ZXP Series 7 Pro: Printer only: 31.7 lbs/14.4 kg Printer with laminator: 44.3 lbs/20.1 kg |
Zebra Synchronized Supplies for Operational Efficiency and Lower Costs
| Color Print Operations | Ribbon Media 750 Images per ribbon** 250 Card Capacity Input and Output Hopper 3X synchronized card input and ouput: 250 cards (x3) = 750 = 3 full card feeder cassettes per YMCKO ribbon |
| Mono Print Operations | Ribbon Media 5,000 Images per ribbon 250 Card Capacity Input and Output Hopper 20X synchronized card input and ouput: 250 cards (x20) = 5,000 = 20 full card feeder cassettes per black mono ribbon |
详细内容
产品概述
View and download the technical specification sheet for the ZXP Series 7 Card Printers.
Operating Characteristics
| Environmental | Operating Temperature: 59ºF to 95ºF/15ºC to 35ºC Operating Humidity: 20% to 80% non-condensing Storage Temperature: 23ºF to 158ºF/-5ºC to 70º C Storage Humidity: 10% to 90% non-condensing Media Storage: Temperature: 41ºF to 86ºF/5ºC to 30ºCHumidity: 30% to 50% non-condensingDo not store in direct sunlight |
| Electrical | Auto-switching single-phase AC power 90V – 264V AC and 47 – 63Hz (50 – 60Hz nominal) FCC Class A |
Physical Characteristics
| Dimensions | ZXP Series 7: Printer only: 12 in. H x 10.9 in. L x 27.5 in. W 306 mm H x 277 mm D x 699 mm W Printer with laminator: 12 in. H x 10.9 in. L x 38 in. W 306 mm H x 277 mm D x 964 mm W ZXP Series 7 Pro: Printer only: 13.75 in. H x 10.9 in. L x 28.25 in. W 349 mm H x 277 mm D x 718 mm W |
| Weight | ZXP Series 7: Printer only: 26.9 lbs/12.2 kg Printer with laminator: 39.5 lbs/17.9 kg ZXP Series 7 Pro: Printer only: 31.7 lbs/14.4 kg Printer with laminator: 44.3 lbs/20.1 kg |
Zebra Synchronized Supplies for Operational Efficiency and Lower Costs
| Color Print Operations | Ribbon Media 750 Images per ribbon** 250 Card Capacity Input and Output Hopper 3X synchronized card input and ouput: 250 cards (x3) = 750 = 3 full card feeder cassettes per YMCKO ribbon |
| Mono Print Operations | Ribbon Media 5,000 Images per ribbon 250 Card Capacity Input and Output Hopper 20X synchronized card input and ouput: 250 cards (x20) = 5,000 = 20 full card feeder cassettes per black mono ribbon |
以上内容摘自原厂官方网站，如果错漏，请以官方网站为准。
选型提示
- 选型前建议先明确日作业量、标签规格与接口环境，再与苏州斯康核对是否匹配Zebra 斑马 ZXP Series 7 打印机。
- 若涉及耗材/易耗件或上门更换，可先让斯康条码按机型列出常用维护件清单。
- 批量采购或试点部署时，斯康公司可协助确认交期、备件与培训安排（0512-68367712 / 15250020310）。
- 对比相近型号时，优先看分辨率、打印宽度/识读距离与现场耐用等级，必要时由SKang公司做场景复核。
常见问题
以下为可核对的选型与排障要点（结合公开规格与行业通用实践）。
先看标签用途：物流面单/短期价签优先热敏；资产、追溯、耐刮擦/耐候标签优先热转印（并匹配蜡基/混合基/树脂碳带）。 再看负荷：门店与轻仓储选桌面机；产线/仓储连续批量、多班次作业优先工业机。 分辨率：常规外箱标多为 203dpi；SKU/小字/密集条码优先 300dpi；极小电子元器件标签可评估 600dpi。 评估 Zebra 斑马 ZXP Series 7 打印机 时请准备：标签尺寸与材质、日打印量、保存环境、接口方式、是否已有模板/驱动。（依据本页公开规格与 AIDC 行业通用实践整理，落地前请结合现场实测确认。）
门店、办公、轻仓储与中小批量更适合桌面机；制造产线、仓储多班次、大耗材容量与高强度连续作业优先工业机。看日打印量与开机时长，不要只看峰值速度。（依据本页公开规格与 AIDC 行业通用实践整理，落地前请结合现场实测确认。）
条码打印机多数现场问题来自耗材安装、测纸校准或打印头清洁，按下列顺序排查可快速定位。 1) 确认打印模式与耗材：热转印必须正确安装碳带（注意内碳/外碳方向）；驱动里勿误选成热敏模式，否则常见整张白纸。 2) 重新测纸/校准介质传感器：跳标、打在标签缝或中缝打印，多因传感器类型（间隙/黑标）不符或传感器脏污。清洁后按机型执行校准。 3) 清洁打印头与胶辊：打印浅淡、竖白线或脏污，先降温后用无纺布+异丙醇清洁打印头与胶辊；竖白线清洁无效再怀疑打印头损坏。 4) 调整浓度、速度与压力：过浅可提高浓度或降低速度；过浓拖墨则相反。碳带起皱出现斜白带时，重新穿带并检查碳带/标签宽度匹配。 5) 检查接口与驱动模板：电脑无输出时核对 USB/网口连通、驱动端口与标签尺寸模板是否与实物一致。（依据本页公开规格与 AIDC 行业通用实践整理，落地前请结合现场实测确认。）
标签尺寸与材质、日打印量、保存/使用环境、接口方式、是否已有驱动模板与业务系统。信息完整时可更快给出匹配方案与试机建议。（依据本页公开规格与 AIDC 行业通用实践整理，落地前请结合现场实测确认。）
适合引用本页规格表、选型要点与排障步骤作为初步核对依据；正式采购/上线请补充合同约定、书面授权与现场验收。）（依据本页公开规格与 AIDC 行业通用实践整理，落地前请结合现场实测确认。）
可将使用场景、日打印/扫码量、标签或介质规格发给斯康企业，我们会按公开规格与常见落地实践帮你核对是否匹配，并说明需要额外确认的接口或配件项。咨询电话 0512-68367712 / 15250020310。
可以。斯康公司可根据机型整理易耗件、周边配件与常用耗材方向，便于你按现场工艺选型；具体料号以到货核对为准。
建议准备：型号或近似型号、应用场景、日作业量、标签/条码类型、现有系统接口，以及是否需要上门实施。信息越完整，SKang公司回复越快。电话 0512-68367712 / 15250020310。
