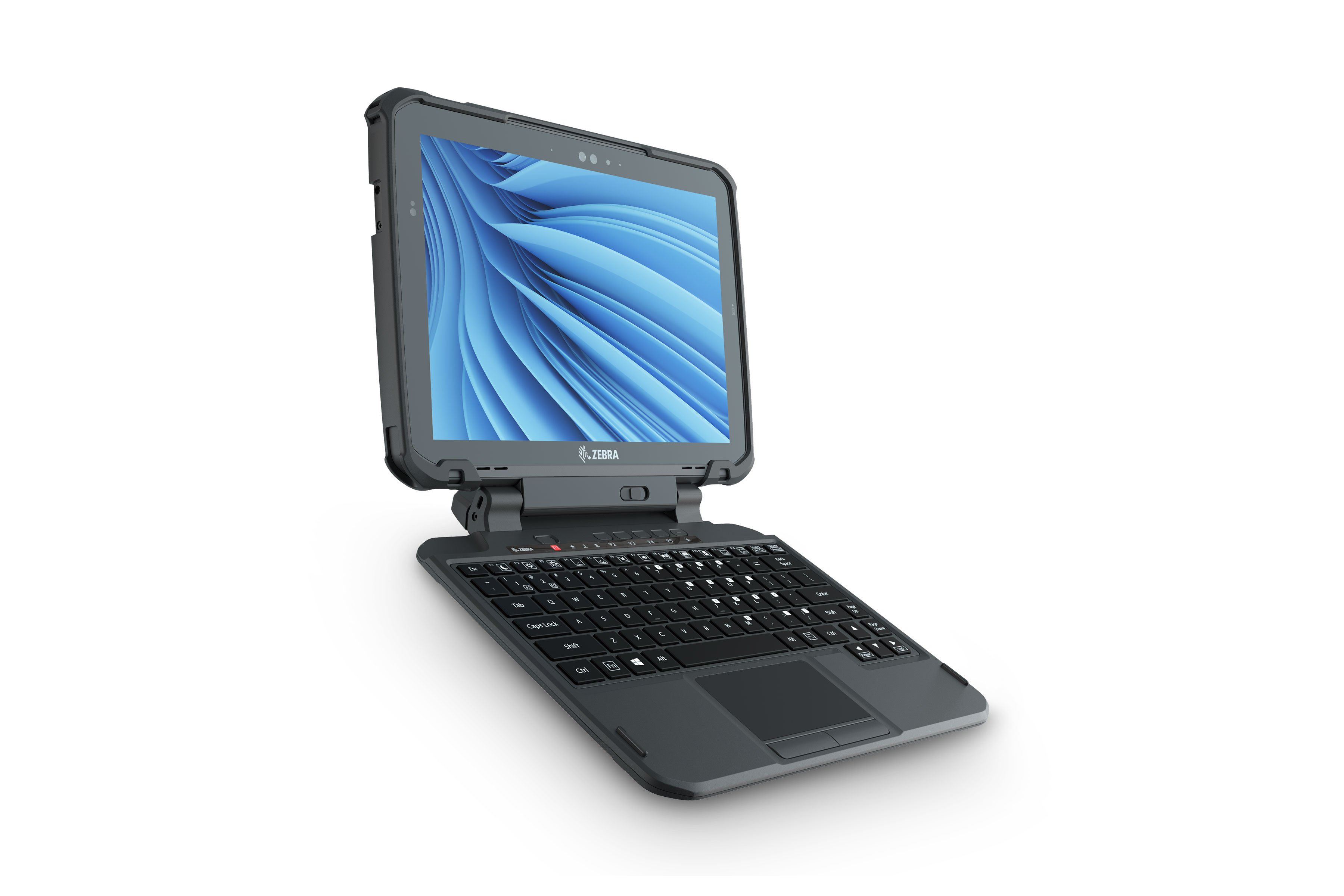

Zebra 斑马 ET85 坚固型平板电脑 是一款平板电脑，提供公开规格与选型资料。适合门店作业、现场服务、业务巡检、信息采集和移动协同场景。本页可优先核对：Form Factor 2-in-1 rugged tablet with friction hinge rugged keyboard option (up to 120° opening angle)；Dimensions Tablet: 12.1 in. W x 8.9 in. L x 0.6 in. H 308
本页资料由斯康企业整理，便于Zebra 斑马 ET85 坚固型平板电脑选型对照与项目沟通。
斯康公司可为Zebra 斑马 ET85 坚固型平板电脑提供参数核对、方案建议与到货支持。
若你在问「哪些场景适合选 Zebra 斑马 ET85 坚固型平板电脑」：优先匹配以上场景标签；现场还需结合标签规格、日作业量、接口环境与是否需要耐摔/防水等条件综合判断。
下列要点便于采购与实施快速核对；优先对照本页规格表，再结合现场标签/码制/接口与作业负荷验证。
先复现问题，再按连接、配置、耗材/介质、环境干扰的顺序排查。
记录故障现象、发生频率、最近是否更换耗材/驱动/网络。
脱离业务系统，用随机/记事本或厂商工具做最小闭环测试。
配置类问题优先恢复默认后再按现场需求重新下发。
View and download the technical specification sheet for the ET80/ET85 Rugged 2-in-1 Tablet.
| Form Factor | 2-in-1 rugged tablet with friction hinge rugged keyboard option (up to 120° opening angle) |
| Dimensions | Tablet: 12.1 in. W x 8.9 in. L x 0.6 in. H 308 mm W x 225 mm L x 16 mm H Tablet with keyboard: 12.1 in. W x 9.6 L in. x 1.1 in. H 308 mm W x 244 mm L x 29 mm H |
| Weight | Tablet (with standard battery): 2.8 lbs/1.3 kg Keyboard: 1.85 lbs/0.84 kg |
| Display | 12 in. 3:2 QHD (2160 x 1440) — 800 nits Sunlight readable Corning Gorilla Glass Anti-reflective (AR)/Anti-Smudge screen treatment Night-vision mode |
| Touchpanel | Capacitive 10-point multi-touch; Glove and Wet modes; MPP 2.0 active pen compatible |
| SIM Slots | ET85 configurations only: Two SIM: (1) Nano SIM (4FF) and (1) eSIM |
| Interface Ports and Expansion | (1) USB-C USB 3.2 Gen2, USB-PD charging, USB DisplayPort (2) USB 3.2 Gen2 Type A ports Expansion connector for available 10/100/1000 Ethernet and DB9 true serial ports WWAN, WLAN and GNSS Antenna pass through Keyboard and docking connectors Optional docking solution may be configured with: (4) USB Type A (2) HDMI Type A (3) Ethernet RJ45, power in |
| Notifications | Charging, camera and battery indicators |
| Audio | Stereo front facing speakers; (2) front facing microphones; (2) rear facing microphones; audio headset supported in USB-C and USB-A ports |
| Buttons | Volume up/down button; power on/off button; barcode scanner button (user definable in configurations without the barcode reader) |
| Keyboard | Available detachable friction hinge rugged keyboard with standard sized keys; precision multitouch touchpad with two physical click buttons; adjustable color backlighting; waterproof IP65; (6) programmable keys including emergency key |
| CPU | 11th generation Intel™ Core™ i7-1180G7 vPro™ processor 11th generation Intel™ Core™ i5-1140G7 vPro™ processor 11th generation Intel™ Core™ i5-1130G7 processor |
| Operating System | Windows™ 11 Professional 64-bit |
| Memory | 8 GB or 16 GB LPDDR4x-4266 |
| Storage | 128 GB, 256 GB or 512 GB tool-less user removable PCIe SSD |
| Form Factor | 2-in-1 rugged tablet with friction hinge rugged keyboard option (up to 120° opening angle) |
| Dimensions | Tablet: 12.1 in. W x 8.9 in. L x 0.6 in. H 308 mm W x 225 mm L x 16 mm H Tablet with keyboard: 12.1 in. W x 9.6 L in. x 1.1 in. H 308 mm W x 244 mm L x 29 mm H |
| Weight | Tablet (with standard battery): 2.8 lbs/1.3 kg Keyboard: 1.85 lbs/0.84 kg |
| Display | 12 in. 3:2 QHD (2160 x 1440) — 800 nits Sunlight readable Corning Gorilla Glass Anti-reflective (AR)/Anti-Smudge screen treatment Night-vision mode |
| Touchpanel | Capacitive 10-point multi-touch; Glove and Wet modes; MPP 2.0 active pen compatible |
| SIM Slots | ET85 configurations only: Two SIM: (1) Nano SIM (4FF) and (1) eSIM |
| Interface Ports and Expansion | (1) USB-C USB 3.2 Gen2, USB-PD charging, USB DisplayPort (2) USB 3.2 Gen2 Type A ports Expansion connector for available 10/100/1000 Ethernet and DB9 true serial ports WWAN, WLAN and GNSS Antenna pass through Keyboard and docking connectors Optional docking solution may be configured with: (4) USB Type A (2) HDMI Type A (3) Ethernet RJ45, power in |
| Notifications | Charging, camera and battery indicators |
| Audio | Stereo front facing speakers; (2) front facing microphones; (2) rear facing microphones; audio headset supported in USB-C and USB-A ports |
| Buttons | Volume up/down button; power on/off button; barcode scanner button (user definable in configurations without the barcode reader) |
| Keyboard | Available detachable friction hinge rugged keyboard with standard sized keys; precision multitouch touchpad with two physical click buttons; adjustable color backlighting; waterproof IP65; (6) programmable keys including emergency key |
| CPU | 11th generation Intel™ Core™ i7-1180G7 vPro™ processor 11th generation Intel™ Core™ i5-1140G7 vPro™ processor 11th generation Intel™ Core™ i5-1130G7 processor |
| Operating System | Windows™ 11 Professional 64-bit |
| Memory | 8 GB or 16 GB LPDDR4x-4266 |
| Storage | 128 GB, 256 GB or 512 GB tool-less user removable PCIe SSD |
| Operating Temp. | -4° F to 140° F/-20° C to 60° C |
| Storage Temp. | -22° F to 158° F/-30° C to 70° C |
| Humidity | 5% to 95% non-condensing |
| Drop Specifications | MIL-STD-810H drop to plywood over concrete Standard: 4 ft./1.2 m With optional rugged boot: 5 ft./1.5 m With keyboard: 3 ft./0.9 m |
| Sealing | IEC 60529 Clause 13.4 enclosures; IP65 for tablet with ports open, keyboard and dock |
| Vibration | Operational: MIL-STD-810H 514.8 Composite Wheel; Non-Operating: MIL-STD-810H 514.8 E-1 |
| Electromagnetic Compatibility | MIL-STD 461G; EN 55032; EN 55024 |
| Thermal Shock | MIL-STD-810H 503.7 -4° F to 140° F/-20° C to 60° C (operating); -22° F to 158° F/-30° C to 70° C (non-operating) |
| Electrostatic Discharge | IEC61000-4-2; ± 15kV air discharge; ± 8 kV contact |
| Shock | MIL-STD-810H Method 516.8, Procedure I; 20 g operating, 40 g non-operating |
| Solar Radiation | MIL-STD 810H 505.7 |
| Contamination by Fluids | MIL-STD-810H, Method 504.3 |
| Approved Cleaning and Disinfecting Agents | Mild dish soap, 70% Isopropyl Alcohol solution, 0.5-3% Hydrogen Peroxide solution, 1:10 Diluted 5.5% Bleach (Sodium Hypochlorite) solution3 |
| Hazardous Location Certification | C1D2 tablet configurations and compliant keyboards available |
| Certifications | EPEAT, Energy Star, EU CoC |
| Vehicle certifications | E-Mark Europe 12V system ECE Regulation No.10 Rev 6 (Tablet with keyboard in docking station) No external DC to DC converter required for 12 volt automobile systems |
| Battery | 5180 mAhr, 7.7V rechargeable Li-Polymer; user replaceable (39.8 Whr) Time to full charge 2.5 hours Optional hot swappable 3400mAh, 7.6V (25.8 Whr) secondary battery (expansion back required) 45W USB-PD (type C) AC adapter sold separately |
| Ambient Light Sensor | Automatically adjusts display attributes and keyboard backlight |
| Magnetometer | 3-axis e-compass |
| Motion Sensor | 3-axis gyroscope; 3-axis accelerometer |
| Scanning | SE4107 2D scanner (available option) |
| Rear Camera | 13 MP auto-focus camera with user controllable LED flash; mechanical privacy shade |
| Front Camera | FHD Windows Hello auto-focus camera; mechanical privacy shade |
| Video | Intel Gen 12 Gfx with 4 display pipes and 8K Intel wireless display External display support: DP 1.2 up to 4096 x 2160 px, 60Hz; dock supports (2) HDMI 1080p displays |
| WiFi (WLAN) | WiFi 6E1, 802.11ax R2 including the new 6 Ghz band, 2x2 MIMO; 802.11a/b/g/n/ac R2/ax R2, WPA, WPA2, WPA3, WPS, PMF, WMM, WMM-PS, WFD, WiFi Agile Multiband, WiFi Optimized Connectivity, WiFi Location, WiFi TimeSync |
| Cellular (WWAN) | ET85 configurations required: available 5G (support for 3 GPP Rel 15 including Cat 22 LTE, 3G, and sub 6 GHz NR) data only or Global LTE Category 12 data only |
| Bluetooth (WPAN) | Bluetooth 5.1 + Audio LE, Class 1 |
| GPS | ET85 configurations required: GPS, GLONASS, BeiDou/Compass, Galileo. Dual band (L1 + L5) with aGPS (support varies by carrier) |
| NFC | Supports NFC peer to peer, card reader/writer and card emulation modes; P2P: ISO/IEC 18092; Reader/Writer: ISO 14443 –A-B, MIFARE, FeliCa™, ISO 15693, NFC Forum Tag Types 1 to 4; Card emulation: ISO 14443 – A-B-B’, MIFARE, FeliCa RF |
View and download the technical specification sheet for the ET80/ET85 Rugged 2-in-1 Tablet.
| Form Factor | 2-in-1 rugged tablet with friction hinge rugged keyboard option (up to 120° opening angle) |
| Dimensions | Tablet: 12.1 in. W x 8.9 in. L x 0.6 in. H 308 mm W x 225 mm L x 16 mm H Tablet with keyboard: 12.1 in. W x 9.6 L in. x 1.1 in. H 308 mm W x 244 mm L x 29 mm H |
| Weight | Tablet (with standard battery): 2.8 lbs/1.3 kg Keyboard: 1.85 lbs/0.84 kg |
| Display | 12 in. 3:2 QHD (2160 x 1440) — 800 nits Sunlight readable Corning Gorilla Glass Anti-reflective (AR)/Anti-Smudge screen treatment Night-vision mode |
| Touchpanel | Capacitive 10-point multi-touch; Glove and Wet modes; MPP 2.0 active pen compatible |
| SIM Slots | ET85 configurations only: Two SIM: (1) Nano SIM (4FF) and (1) eSIM |
| Interface Ports and Expansion | (1) USB-C USB 3.2 Gen2, USB-PD charging, USB DisplayPort (2) USB 3.2 Gen2 Type A ports Expansion connector for available 10/100/1000 Ethernet and DB9 true serial ports WWAN, WLAN and GNSS Antenna pass through Keyboard and docking connectors Optional docking solution may be configured with: (4) USB Type A (2) HDMI Type A (3) Ethernet RJ45, power in |
| Notifications | Charging, camera and battery indicators |
| Audio | Stereo front facing speakers; (2) front facing microphones; (2) rear facing microphones; audio headset supported in USB-C and USB-A ports |
| Buttons | Volume up/down button; power on/off button; barcode scanner button (user definable in configurations without the barcode reader) |
| Keyboard | Available detachable friction hinge rugged keyboard with standard sized keys; precision multitouch touchpad with two physical click buttons; adjustable color backlighting; waterproof IP65; (6) programmable keys including emergency key |
| CPU | 11th generation Intel™ Core™ i7-1180G7 vPro™ processor 11th generation Intel™ Core™ i5-1140G7 vPro™ processor 11th generation Intel™ Core™ i5-1130G7 processor |
| Operating System | Windows™ 11 Professional 64-bit |
| Memory | 8 GB or 16 GB LPDDR4x-4266 |
| Storage | 128 GB, 256 GB or 512 GB tool-less user removable PCIe SSD |
| Operating Temp. | -4° F to 140° F/-20° C to 60° C |
| Storage Temp. | -22° F to 158° F/-30° C to 70° C |
| Humidity | 5% to 95% non-condensing |
| Drop Specifications | MIL-STD-810H drop to plywood over concrete Standard: 4 ft./1.2 m With optional rugged boot: 5 ft./1.5 m With keyboard: 3 ft./0.9 m |
| Sealing | IEC 60529 Clause 13.4 enclosures; IP65 for tablet with ports open, keyboard and dock |
| Vibration | Operational: MIL-STD-810H 514.8 Composite Wheel; Non-Operating: MIL-STD-810H 514.8 E-1 |
| Electromagnetic Compatibility | MIL-STD 461G; EN 55032; EN 55024 |
| Thermal Shock | MIL-STD-810H 503.7 -4° F to 140° F/-20° C to 60° C (operating); -22° F to 158° F/-30° C to 70° C (non-operating) |
| Electrostatic Discharge | IEC61000-4-2; ± 15kV air discharge; ± 8 kV contact |
| Shock | MIL-STD-810H Method 516.8, Procedure I; 20 g operating, 40 g non-operating |
| Solar Radiation | MIL-STD 810H 505.7 |
| Contamination by Fluids | MIL-STD-810H, Method 504.3 |
| Approved Cleaning and Disinfecting Agents | Mild dish soap, 70% Isopropyl Alcohol solution, 0.5-3% Hydrogen Peroxide solution, 1:10 Diluted 5.5% Bleach (Sodium Hypochlorite) solution3 |
| Hazardous Location Certification | C1D2 tablet configurations and compliant keyboards available |
| Certifications | EPEAT, Energy Star, EU CoC |
| Vehicle certifications | E-Mark Europe 12V system ECE Regulation No.10 Rev 6 (Tablet with keyboard in docking station) No external DC to DC converter required for 12 volt automobile systems |
| Battery | 5180 mAhr, 7.7V rechargeable Li-Polymer; user replaceable (39.8 Whr) Time to full charge 2.5 hours Optional hot swappable 3400mAh, 7.6V (25.8 Whr) secondary battery (expansion back required) 45W USB-PD (type C) AC adapter sold separately |
| Ambient Light Sensor | Automatically adjusts display attributes and keyboard backlight |
| Magnetometer | 3-axis e-compass |
| Motion Sensor | 3-axis gyroscope; 3-axis accelerometer |
| Scanning | SE4107 2D scanner (available option) |
| Rear Camera | 13 MP auto-focus camera with user controllable LED flash; mechanical privacy shade |
| Front Camera | FHD Windows Hello auto-focus camera; mechanical privacy shade |
| Video | Intel Gen 12 Gfx with 4 display pipes and 8K Intel wireless display External display support: DP 1.2 up to 4096 x 2160 px, 60Hz; dock supports (2) HDMI 1080p displays |
| WiFi (WLAN) | WiFi 6E1, 802.11ax R2 including the new 6 Ghz band, 2x2 MIMO; 802.11a/b/g/n/ac R2/ax R2, WPA, WPA2, WPA3, WPS, PMF, WMM, WMM-PS, WFD, WiFi Agile Multiband, WiFi Optimized Connectivity, WiFi Location, WiFi TimeSync |
| Cellular (WWAN) | ET85 configurations required: available 5G (support for 3 GPP Rel 15 including Cat 22 LTE, 3G, and sub 6 GHz NR) data only or Global LTE Category 12 data only |
| Bluetooth (WPAN) | Bluetooth 5.1 + Audio LE, Class 1 |
| GPS | ET85 configurations required: GPS, GLONASS, BeiDou/Compass, Galileo. Dual band (L1 + L5) with aGPS (support varies by carrier) |
| NFC | Supports NFC peer to peer, card reader/writer and card emulation modes; P2P: ISO/IEC 18092; Reader/Writer: ISO 14443 –A-B, MIFARE, FeliCa™, ISO 15693, NFC Forum Tag Types 1 to 4; Card emulation: ISO 14443 – A-B-B’, MIFARE, FeliCa RF |
以上内容摘自原厂官方网站，如果错漏，请以官方网站为准。
以下为可核对的选型与排障要点（结合公开规格与行业通用实践）。
围绕 Zebra 斑马 ET85 坚固型平板电脑 选型时，优先对齐应用场景、关键规格、接口环境与现场工况，再决定是否上机测试。 View and download the technical specification sheet for the ET80/ET85 Rugged 2-in-1 Tablet.（依据本页公开规格与 AIDC 行业通用实践整理，落地前请结合现场实测确认。）
先复现问题，再按连接、配置、耗材/介质、环境干扰的顺序排查。 1) 复现并记录：记录故障现象、发生频率、最近是否更换耗材/驱动/网络。 2) 最小环境验证：脱离业务系统，用随机/记事本或厂商工具做最小闭环测试。 3) 对照说明书复位：配置类问题优先恢复默认后再按现场需求重新下发。（依据本页公开规格与 AIDC 行业通用实践整理，落地前请结合现场实测确认。）
适合引用本页规格表、选型要点与排障步骤作为初步核对依据；正式采购/上线请补充合同约定、书面授权与现场验收。）（依据本页公开规格与 AIDC 行业通用实践整理，落地前请结合现场实测确认。）
可将使用场景、日打印/扫码量、标签或介质规格发给斯康条码，我们会按公开规格与常见落地实践帮你核对是否匹配，并说明需要额外确认的接口或配件项。咨询电话 0512-68367712 / 15250020310。
可以。SKang公司可根据机型整理易耗件、周边配件与常用耗材方向，便于你按现场工艺选型；具体料号以到货核对为准。
建议准备：型号或近似型号、应用场景、日作业量、标签/条码类型、现有系统接口，以及是否需要上门实施。信息越完整，苏州斯康回复越快。电话 0512-68367712 / 15250020310。
