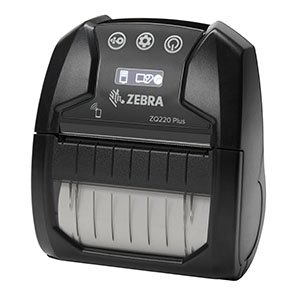

Zebra 斑马 ZQ220 移动打印机
ZQ220 移动打印机用于企业现场标识与数据采集相关场景，详情覆盖FONTS、PRINTER SPECIFICATIONS、MEDIA CHARACTERISTICS等关键信息。
核心参数
分辨率
203 dpi/8 dots per mm
内存
16MB SDRAM, 16MB Flash
最大打印宽度
72 mm/2.83 in.
最大打印速度
2.5 ips (60 mm/s)
扫码加企业微信
快速咨询 · 方案沟通 · 项目对接
已有 959 人浏览
适用场景
企业标识
条码打印
数据采集
产品简介
ZQ220 移动打印机用于企业现场标识与数据采集相关场景，详情覆盖FONTS、PRINTER SPECIFICATIONS、MEDIA CHARACTERISTICS等关键信息。
- Built-in fonts (bitmap) English/Latin9, Cyrillic, (APAC SKU) traditional
- Chinese M Kai 24x24, New Sans MT 16x16
- BARCODE SYMBOLOGY
- Linear Barcodes Code 39, Code 93, UCC/EAN128 (GS1-128), Code
- 128, Codabar, Interleaved 2-of-5, UPC-A and UPC-E
- 2, 5 digit add-on and composite, EAN-8, EAN-13, 2,
核心规格
| 分辨率 | 203 dpi/8 dots per mm |
| 内存 | 16MB SDRAM, 16MB Flash |
| 最大打印宽度 | 72 mm/2.83 in. |
| 最大打印速度 | 2.5 ips (60 mm/s) |
| 传感器 | Black Mark, Gap, Media Out sensing |
| 电池容量 | 2550 mAh (7.26V) |
| 介质类型 | Direct Therm |
| 编程语言 | CPCL language |
详细内容
产品概述
ZQ220 移动打印机用于企业现场标识与数据采集相关场景，详情覆盖FONTS、PRINTER SPECIFICATIONS、MEDIA CHARACTERISTICS等关键信息。
FONTS
- Built-in fonts (bitmap) English/Latin9, Cyrillic, (APAC SKU) traditional
- Chinese M Kai 24x24, New Sans MT 16x16
- BARCODE SYMBOLOGY
- Linear Barcodes Code 39, Code 93, UCC/EAN128 (GS1-128), Code
- 128, Codabar, Interleaved 2-of-5, UPC-A and UPC-E
- 2, 5 digit add-on and composite, EAN-8, EAN-13, 2,
- 5 digit add-on and composite
- 2D Barcodes PDF417, MicroPDF417, MaxiCode, QR Code, GS1/
- DataBar™ (RSS) family, Aztec, MSI/Plessey
- DEVELOPER SOFTWARE AND TOOLS
- SDK ZebraLink, legacy Multiplatform SDK support for
- PC Windows v7, v8, v10, Android, iOS, Windows CE,
- Windows Mobile 6.5
- Tools Zebra PC Setup Utility, OPOS Driver, Zebra
- NetBridge, Zebra Designer (Printer Windows Driver,
- Font and Graphic Downloader, Status Monitor,
- Label Design Application)
- OPTIONAL ACCESSORIES
- Battery Spare ZQ220 printer battery 2550 mAh. Note: one
- battery ships with the printer
- Soft Case Add an extra layer of protection for harsh
- environments with a soft case. When inserted into
- the case, the printer is IP54-rated for resistance
- to windblown water and dust. Includes a shoulder
PRINTER SPECIFICATIONS
- Programming
- Languages
- CPCL language
- Resolution 203 dpi/8 dots per mm
- Memory 16MB SDRAM, 16MB Flash
- Max Print Width 72 mm/2.83 in.
- Max Print Speed 2.5 ips (60 mm/s)
- Sensors Black Mark, Gap, Media Out sensing
- Battery Capacity
- and Type
- 2550 mAh (7.26V), rechargeable Li-ion battery
MEDIA CHARACTERISTICS
- Media Type Direct Thermal media, continuous receipt, black mark
- receipt, tag and gap label, option for linerless label
- Media Width 80 mm/3.15 in.
- 76.2 mm/3.00 in.
- 58 mm/2.28 in.
- 50.8 mm/2.00 in.
- Media Roll Diameter Inner: 12.7 mm/0.5 in.
- Outer: 50 mm/2.0 in.
- Media Thickness 0.058 mm to 0.1575 mm
ENVIRONMENT AND RESISTANCE
- Operating Temp. -10°C to 50°C/14°F to 122°F
- Storage Temp. -20°C to 60°C/-4°F to 144°F
- Charging Temperature -0°C to 40°C/32°F to 104°F
- Charging Time 3.5 Hours (23 °C +/- 5°C)
- Printing Length
- per Charge
- Minimum of 500 labels x 6 in. length, 13% density
- Printhead Reliability 50KM abrasion resistance (scratch failure mode by
- foreign particle is excluded)
- Drop Specification 1.5 m/5 ft. to concrete
- IP Rating IP43 (IP54 with case)
AGENCY APPROVALS
- Emissions EN55032, ETSI EN 301 489 -1 / -17
- Susceptibility EN55035, ETSI EN 301 489 -1 / -17
- Safety EN60950, EN62368
- COMMUNICATION AND INTERFACE
- Bluetooth Bluetooth 2.1+EDR/4.1 Low Energy dual mode
- USB Port USB 2.0 type-C connector
- NFC Tag Passive NFC tag
- Ideal for These
- Applications
- Retail/Hospitality
- • Mobile Point of Sale
- • Line busting
- Transportation &
- Logistics
- • Field Service
- • Direct Store Delivery
- (DSD)
- • Proof of Pickup/
- Delivery
- • Bag Reconciliation
- • Post and Parcel
- • Passenger Ticketing
- Manufacturing
- Government
PRINTING SUPPLIES
- For industry-leading quality, service and thermal printing expertise, choose
- Zebra Certified Supplies to ensure consistent, optimized performance for your
- Zebra printer.
- WARRANTY
- The ZQ220 is warranted against defects in workmanship and materials for a
- period of 1 (one) year from the date of shipment. For the complete warranty
- statement, please visit: .
- RECOMMENDED SERVICES
- Zebra OneCare SV 1
- ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corporation, registered in many jurisdictions worldwide. All other
- trademarks are the property of their respective owners. ©2019 Zebra Technologies Corporation and/or its affiliates. All rights reserved.
- Part number: SS-ZQ220 04/30/2019
- NA and Corporate Headquarters
- +1 800 423 0442
- Asia-Pacific Headquarters
- +65 6858 0722
- EMEA Headquarters
- zebra.com/locations
- Latin America Headquarters
- +1 847 955 2283
- ZQ220 Specifications (continued)
- 1. Zebra OneCare SV not available in all markets
- PRODUCT SPEC SHEET
- ZQ220
