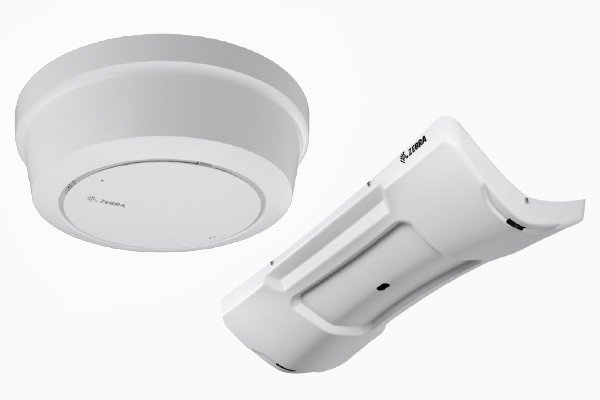

Zebra 斑马 ST5500 RFID设备

ST5500 RFID设备用于企业现场标识与数据采集相关场景，详情覆盖Physical Characteristics、Environmental、Power Requirements等关键信息。

• Dimensions 47.0 in. L x 22.0 in. W x 9.0 in. D
• (19.56 cm L x 14.99 cm W x 4.32 cm D)
• Weight 23 lbs./10.4 kg

产品概述

ST5500 RFID设备用于企业现场标识与数据采集相关场景，详情覆盖Physical Characteristics、Environmental、Power Requirements等关键信息。

Physical Characteristics

• Dimensions 47.0 in. L x 22.0 in. W x 9.0 in. D
• (19.56 cm L x 14.99 cm W x 4.32 cm D)
• Weight 23 lbs./10.4 kg

Environmental

• Operating Temp. -4° to +131° F/-20° to +55° C
• Storage Temp. -40° to +158° F/-40° to +70° C
• Humidity 95% RH non-condensing
• ESD ± 15 kV air discharge; ± 8 kV direct dishcarge;
• ± 8 kV indirect dishcarge

Power Requirements

• Input Power 18W max (37-55 VDC POE)

Connectivity

• Communications 10/100 BaseT Ethernet (RJ45) w/ POE support;
• USB Client (USB Type B), USB Host Port (Type A)
• General Purpose I/O 2 inputs, 3 outputs, optically isolated
• (Terminal Block)
• Power Supply POE, POE+ or +24V DC (UL Approved)
• 12V-48VDC operation can be supported
• Antenna Ports FX 7500-2: 2 monostatic ports
• (Reverse Polarity TNC)
• FX 7500-4: 4 monostatic ports

Hardware, OS and Firmware Management

• Processor Texas Instruments AM3505 (600 Mhz)
• Memory Flash 512 MB; DRAM 256 MB
• Operating System Linux
• Firmware Upgrade Web-based and remote firmware upgrade
• capabilities
• Management Protocols RM 1.0.1 (with XML over HTTP/HTTPS and
• SNMP binding); RDMP
• Network Services DHCP, HTTPS, FTPS, SFPT, SSH, HTTP, FTP,
• SNMP and NTP
• Network Stack IPv4 and IPv6
• Security Transport Layer Security Ver 1.2, FIPS-140
• Air Protocols EPCglobal UHF Class 1 Gen2, ISO 18000-6C
• Frequency (UHF Band) Global Reader: 902 MHz – 928 MHz (Maximum,
• supports countries that use a part of this band),
• 865 MHz – 868 MHz US (only)
• Reader: 902 MHz – 928 MHz

Transmit Power

• Output
• 10 dBm to +31.5 dBm (POE+, 12V ~ 48V External
• DC, Universal 24V DC Power Supply); +10 dBm
• to +30.0 dBm (POE)
• Max. Receive Sensitivity -82 dBm
• IP addressing Static and Dynamic
• Host Interface Protocol LLRP
• API Support Host Applications – .NET, C and Java EMDK;
• Embedded Applications – C & Java SDK

Warranty

• The ST5500 transition RFID reader is warrantied against defects in
• workmanship and materials for a period of one year (12 months) from date of
• shipment, provided the product remains unmodified and is operated under
• normal and proper conditions.
• PRODUCT SPEC SHEET
• ST5500 TRANSITION RFID READER
